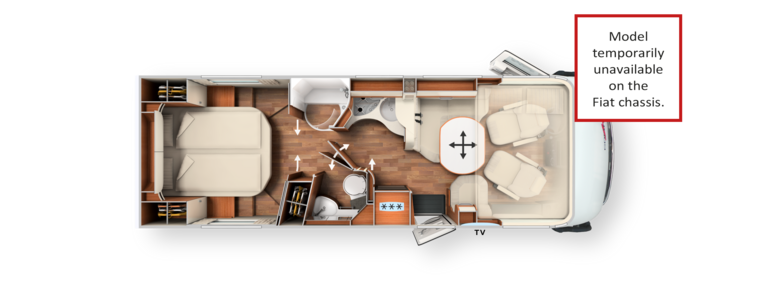

chic c-line Fiat Ducato I 5.0 QB L
Quick overview
Length
7780 mm
Tech. permissible laden weight
4250 kg
Max. tech. permissible laden weight
4500 (*) kg
Max. Sleeping locations
5
Price
₤ 126.850,–
Special features
- L-shaped lounge seating area with wide side seat bench and rectangular living area table with chrome piping
- Pull-out shoe cabinet with holding system for up to four pairs of shoes integrated in plinth of seat bench
- Raised kitchen worktop with designer bar cabinet as visual room divider and additional work surface
- Large luxury corner kitchen with curved worktop, slide-out storage cabinet integrated in round washroom wall
- Luxury washroom with separate shower
- Changing room separable via luxury washroom door with 3-way function thanks to washroom double door and pull out TV wall and room divider
- Floor-to-ceiling wardrobe
- Large queen-size bed with convenient access, comfortable sleeping width up to foot area, two wardrobes at side of bed, two large drawers at front of bed
- Exclusive lighting concept in LED light technology with dimming function, main light with numerous spotlights and indirect ambient light, separately controllable
Technical data
| Standard chassis | Fiat Ducato AL-KO low frame 40 heavy |
| Basic motorisation | Diesel 2,2 l (180 PS/132 kW) |
| Total length | 7780 mm |
| Total width | 2270 mm |
| Total height | 2890 mm |
| Wheelbase | 4343 mm |
| Double floor height / double floor storage compart- ment | 220/460 mm |
| Standing height in living area | 1980 mm |
| Rear garage interior height | 1120/1240* mm |
| Door width/height rear garage passengers side | 1050/1100 mm |
| Door width/height rear garage drivers side | 1050/1100 mm |
| Tech. permissible total weight | 4250 kg |
| Max. tech. permissible laden weight | 4500 (*) kg |
| Weight in running order | Legal tolerance of -/+ 5% | 3.485 (3.311 - 3.659) kg |
| Weight of additional equipment in series production specified by the manufacturer | 405 kg |
| Max. towed load | 1800 kg |
| Sitting places (standard/optional) | 4 | 5 |
| Sleeping places | 4 |
| Sleeping places max. | 5 |
| Type of sleeping places | Queen-size bed |
| Rear bed dimensions | 1950 x 1450 |
| 230 V / 12 V / USB sockets | 5 / 2 /2 |
| Seating area bed conversion dimensions (mm) * | 1920 x 1125 / 670** |
| Fridge volume / of which freezer compartment (l) | 153/29 l |
| Fresh water tank volume with filling in running order (l) | 20 l |
| Folding bed dimensions | 1950 x 1600 |
| Heating system | Truma Combi 6 |
| Fresh water volume | 170 l |
| Waste water volume | 140 l |
| Battery capacity | 2x80 Ah Gel |
| Price from | ₤ 126.850,– |
(*) Option with max. payload *Optional Pedelec scooter garage **in conjunction with special equipment
