Driver’s cabin design

Fiat Ducato driver’s cabin: Standard version with all-round overhead storage cabinets, with Barcelona world of living

All-round overhead storage cabinets provides a tremendous amount of storage space in the driver’s cabin area

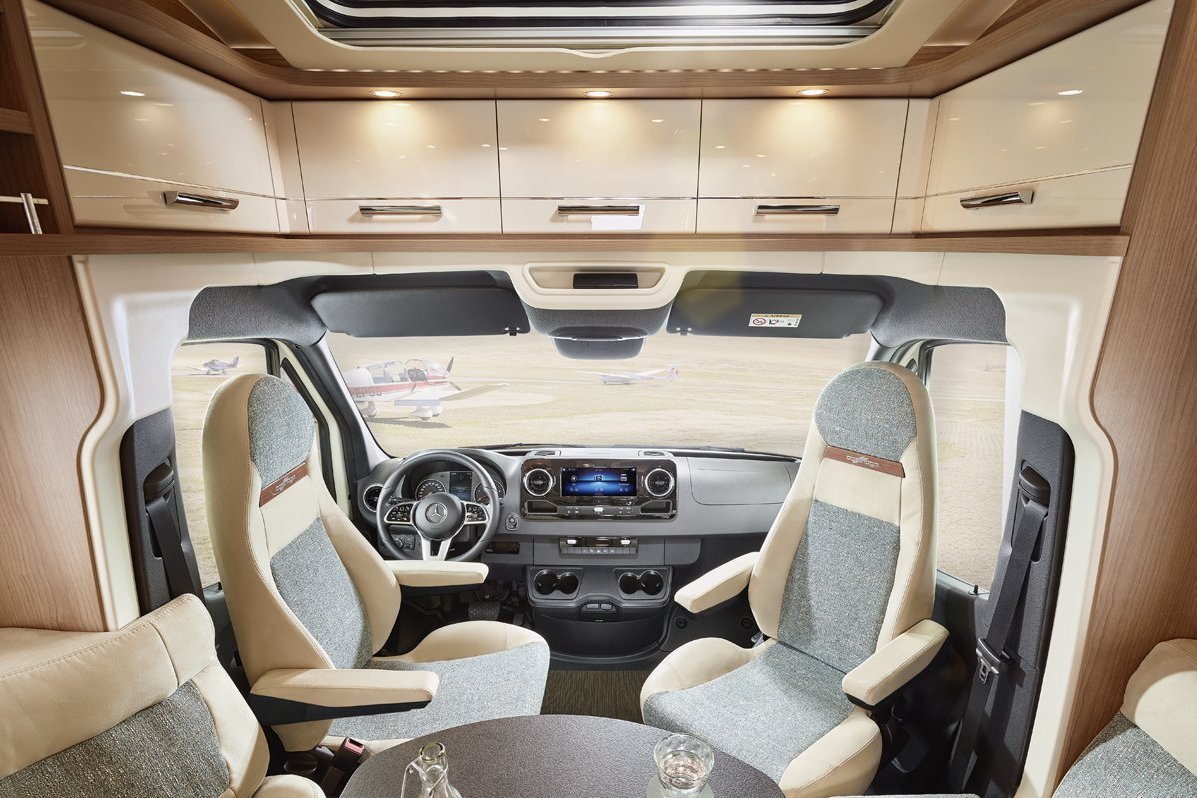

Mercedes-Benz Sprinter driver’s cabin: Standard version with all-round overhead storage cabinets, with Cambridge world of living

Driver’s cabin pilot seats with upholstered, adjustable armrests

Living area

“Smartline plus” furniture design

choice of several worlds of style

casablanca world of style (only T 145 RB LE)

Swivel-out shoe cabinet with holder system for up to four pairs of shoes integrated in plinth of seat bench

L-shaped lounge seating area with wide side seat bench (T 148 LE, T 149 LE, T 150 QB)

Smart 24" or 32" LED TV including TV pull-out system (T 145 RB LE)*

TV pull-out system “Quick up” behind backrest (24" or 32", depending on model)*

Elegantly integrated designer TV cabinet including 32” LED flat screen (T 143 LE)*

Ambient floor plinth underlighting in the living and kitchen area (not T 143 LE)

Stepless, continuous floor in living area from driver’s cabin to the sleeping area

Ergonomically shaped seat upholstery with multi-layer premium foam core and stylish front panel

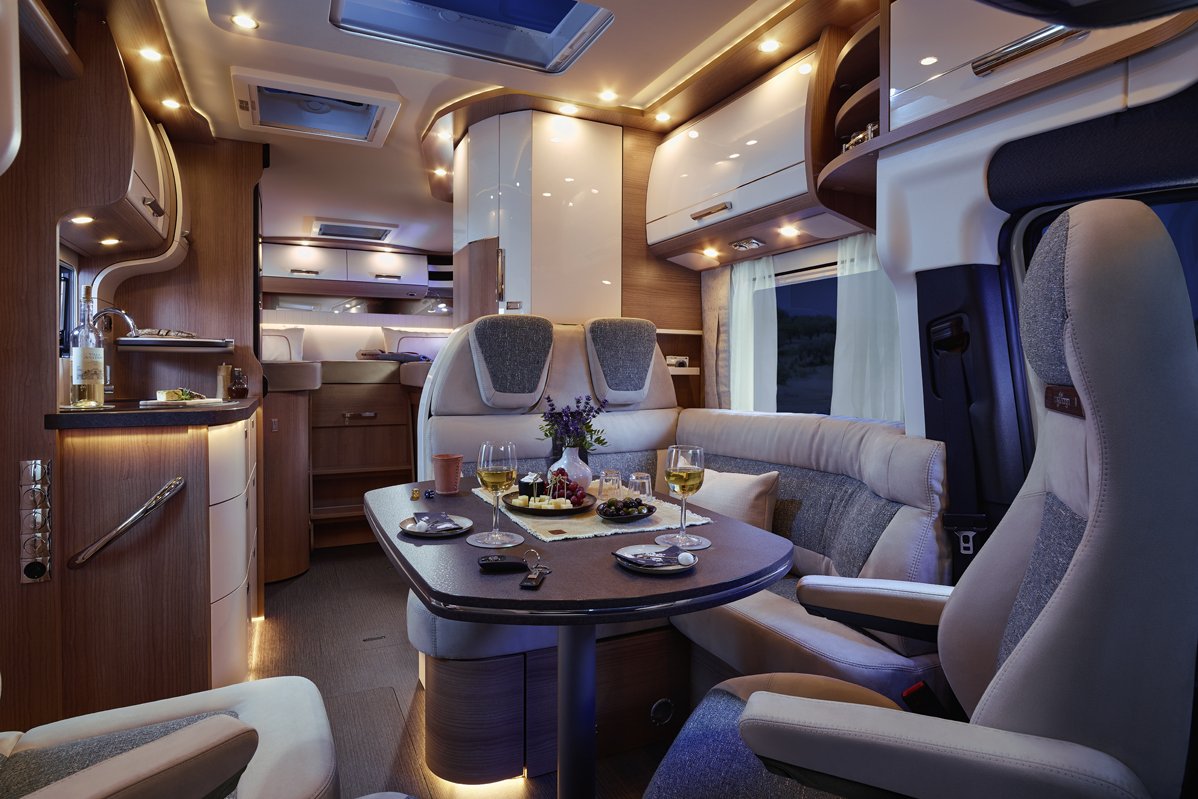

Exclusive lighting concept with LED lighting technology with separately controlled, indirect ambient lighting and main light with numerous spotlights

Electrically lowerable central fold-up bed* above the seating area (T 148 LE H)

*optional

Kitchen

Comfort corner kitchen with curved, extra large worktop and integrated bottle cabinet (T 149 LE, T 150 QB)

Comfort corner kitchen with large, curved work sur-face, six large drawers, separate waste bin in separate hygiene area, designer overhead storage cabinet with vertical waveform and elevated kitchen worktop for visual room partitioning and as an additional work surface (T 145 RB LE)

Designer overhead storage compartment with Capsule coffee maker and pull-out system*

Six large drawers with separate waste bin in separate hygiene area (model-dependent)

Use of the sink cover via the wall holder with chopping board function

Spice rack design element and practical detail at the same time – secure storage for spices in the kitchen area (T 148 LE)

*optional

Washroom

Combined washroom: Washroom / toilet area with separate round shower (T 143 LE, T 148 LE, T 148 LE H)

Private changing area thanks to washroom door

Changing room with room partitioning (T 149 LE)

Comfort luxury washroom with changing room separable (T 145 RB LE, T 149 LE, T 150 QB)

Sleeping area

Large lengthways single beds with raisable head section and access steps (T 143 LE, T 148 LE, T 149 LE)

Queen-size bed with extra large sleeping area and raisable head section. There are wardrobes to the left and right of queen-size bed (T 150 QB)

Large lengthways single beds with large sleeping areas and adjustable head sections, pull-out lightweight access steps (optional) (T 145 RB LE)

Large drawer in the front of the queen-size bed

Fold-away mattress section at passenger side for extra-wide passage

Wardrobes beneath the lengthways single beds with lift function

Exterior

Dynamik Heck Mercedes-Benz Sprinter (T 145 RB LE)

XL habitation door “premium two 2.0” with widened passage size of 63 cm, secure double locking, extra-wide door window, pleated blackout blind and integrated insect screen roller blind

Exterior hatches and doors with interior hinges, integrated flat in the body

Central locking using hand transmitter in the main key for the drivers cabin doors

AL-KO low frame special light with light weight and passenger car-like driving comfort

Double floor with large storage compartment

(Usable height up to 55.5 cm)

Large, central through-loading space (interior height 22 cm), with extra-low double floor storage compartment (usable height 46 cm), convenient loading also through the XL habitation door via a large, self-supporting living area floor hatch
The entire double floor is heated with a climate storage function and underfloor heating effect

Scooter garage

with large interior height thanks to deep lowering, with access from both sides via two large scooter garage doors at the driver and passenger sides

Load from the outside

Convenient loading of the double floor storage compartment via a large external hatch

Unload from the inside

Easy removal of the storage compartment contents from the inside via the lift-up seat bench cover of the L-shaped lounge seating area with patented fitting

Load from the outside

Large, additional double floor storage compartment with separate exterior hatch

Load from the outside

Convenient loading of the double floor storage compartment via a large external hatch (depending on model)

Unload from the inside

Convenient removal of contents via the lift-up side seat bench (depending on model)

Unload from the inside

Large living area floor hatch in the entrance area: also easy to load from the outside with the XL habitation door open

Additional double floor storage compartments

Living area floor hatch with double floor storage box (42 cm usable depth) in heated double floor

On-board equipment

Truma Combi 6 warm air storage heating system

with numerous warm air outlets throughout the double floor, the living area, the scooter garage and the cold-sensitive door entrances

“easy change” gas bottle compartment

extra low for convenient bottle changing, both bottles individually accessible (not T 143 LE)

Gas bottle compartment

with separate exterior door (T 143 LE). Optional: comfort gas bottle pull-out system

Central water drain

and water tanks in the frost-proof double floor; can also be operated from the outside through the XL habitation door

Electrical centre

easily accessible in scooter garage

Heated battery centre

with main battery switch; Standard: Gel batteries 1 x 80 Ah, extendible to 2 x 80 Ah, optional 90 Ah lithium-ion battery including battery computer and separate touch display

Worlds of living

c-tourer T 145 RB LE

Very high quality Antara / fabric combination:
Antara with highly effective “Teflon Repel” stain protection, contrasting fabric with dirt-repellent stain protection

Very high quality textile leather / fabric combination:
extremely hard-wearing textile leather in soft Nappa quality, contrasting fabric with dirt-repellent stain protection

Very high quality leather / fabric combination:
leather with outstanding quality, contrasting fabric with dirt-repellent stain protection

Very high quality leather finish:
classy combination of leather with outstanding quality

Catalogue order

To the order

Download

Download

Base vehicle	Fiat Ducato
Length	6.41 - 6.95 m
Tech. permissible laden weight	3.5 - 4.25 t

Base vehicle	Fiat Ducato, Mercedes-Benz Sprinter
Length	6.67 - 7.65 m
Tech. permissible laden weight	3.5 - 4.5 t

Base vehicle	Fiat Ducato, Mercedes-Benz Sprinter
Length	7.39 - 8.78 m
Tech. permissible laden weight	4.2 - 5.5 t

Base vehicle	Fiat Ducato, Mercedes-Benz Sprinter
Length	7.89 - 8.99 m
Tech. permissible laden weight	4.5 - 5.5 t
